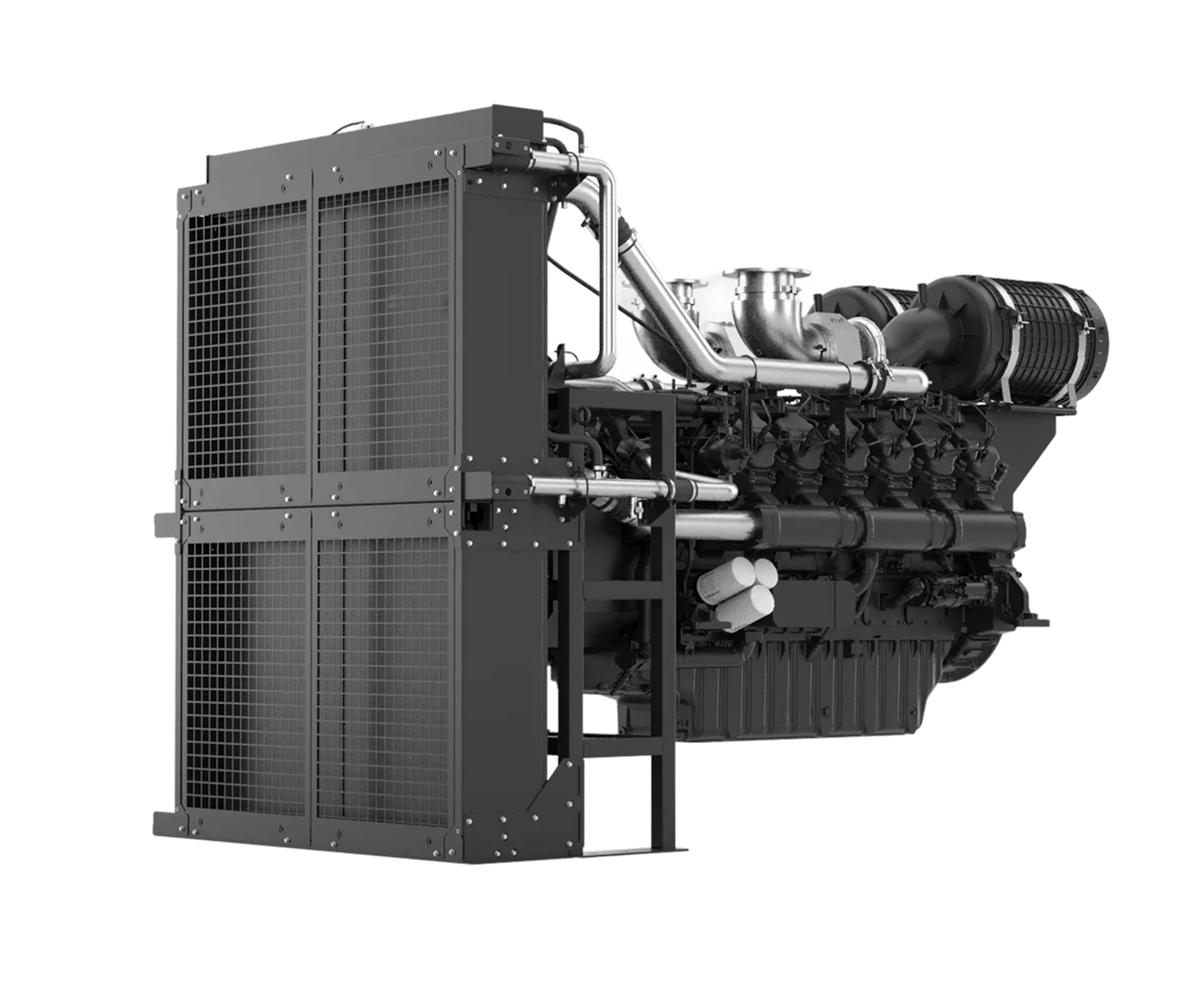

Engine View 2
Engine View 3

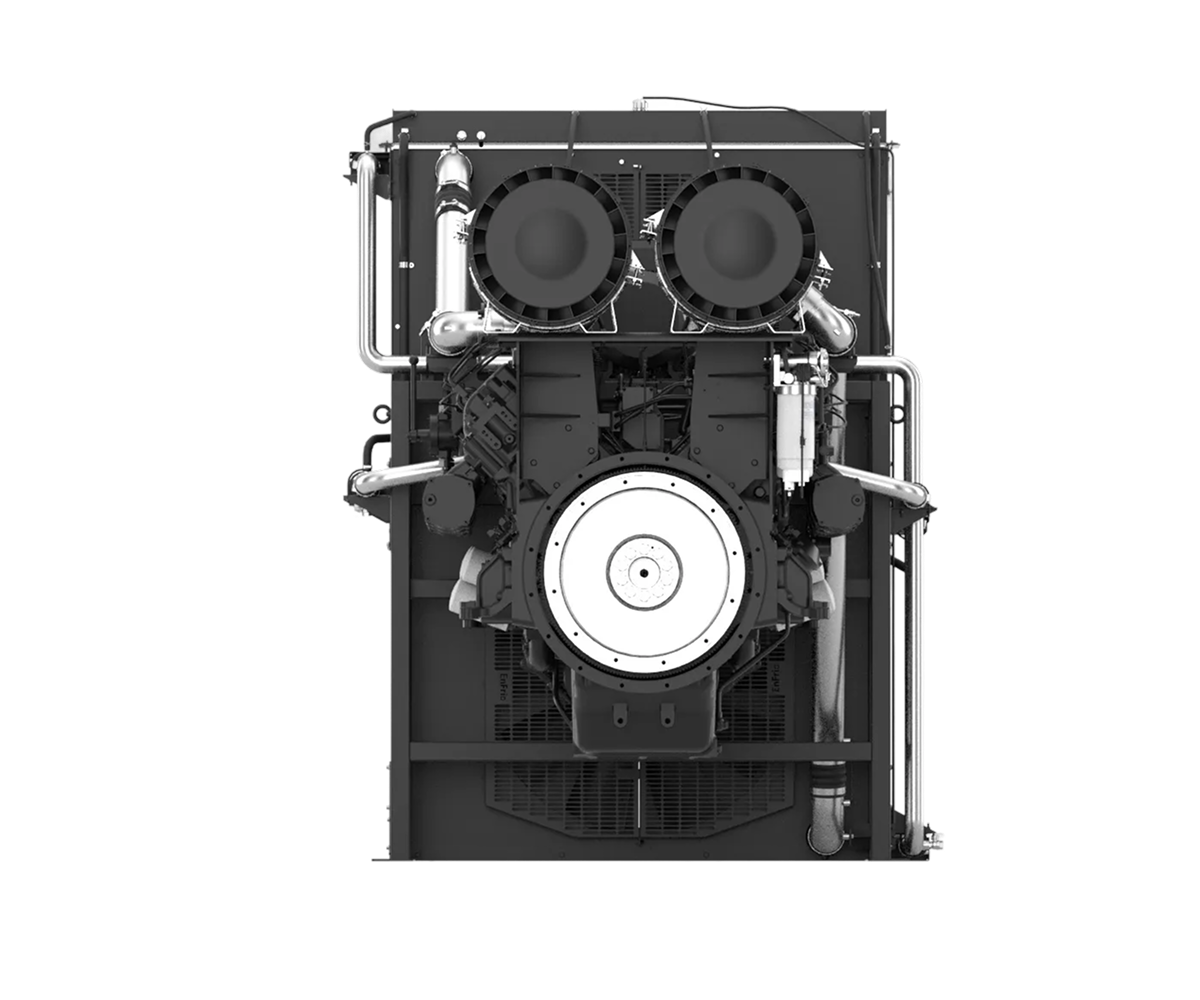

Engine View 4

12M33C900-15

The 12M33C900-15 marine propulsion engine is crafted for unrestricted continuous-duty sea operations, providing steadfast power, high torque output, and optimised fuel economy across diverse load profiles. Compliant with IMO Tier II regulations, it is perfectly suited for commercial ships, large workboats, and maritime projects needing durable performance, operational efficiency, and an extended life cycle.

ENGINE DATA

Rated Power (HP)900
Rated Power (kW)662
Rated Speed (RPM)1500
Max. Torque Nm @ RPM5081 @ 1000
Rotating Direction (Facing Flywheel End)Anticlockwise
Bore × Stroke (mm)150 × 185
Displacement (L)19.6
No. of Cylinders6 – Inline
AspirationTurbocharged Intercooled
Power Output SizeSAE 0 / 18
Compression Ratio15:1
Emission StandardIMO Tier II
CertificationIRS/CCS/BV
Fuel Consumption (g/kW.h)≤200
Oil Sump Capacity (L)113
CONNECT WITH US FOR PROJECT CONSULTATION

RATING

DutyHPKWRPMCertification
P1 (Continuous)9006621500IMO II
