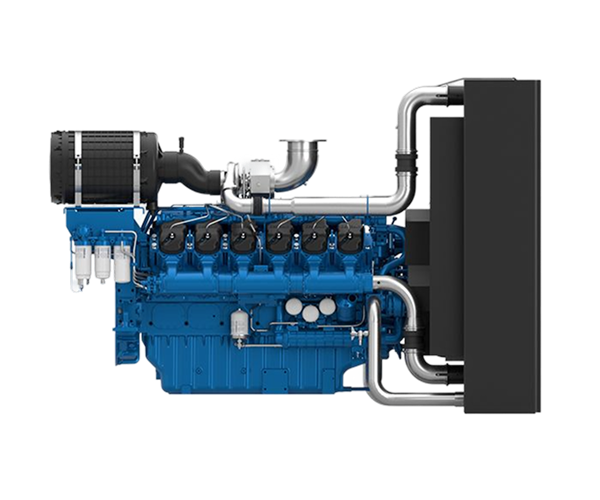

Engine View 2

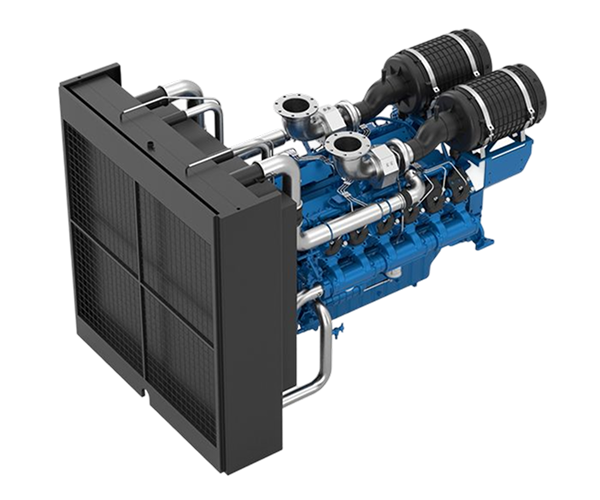

Engine View 3

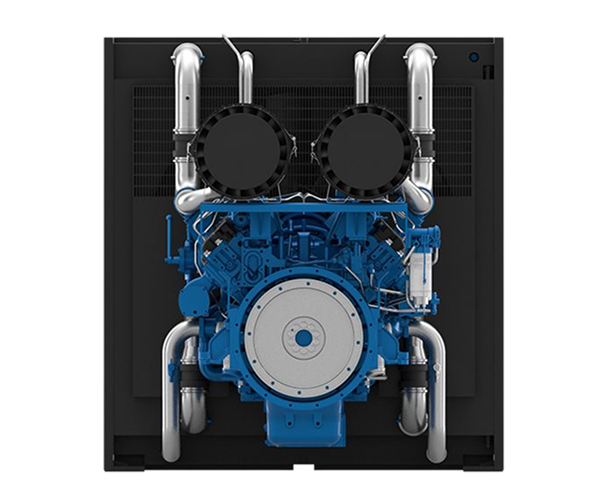

Engine View 4

12M33C1100-15

The 12M33C1100-15 marine propulsion engine is engineered for heavy-duty, continuous-service maritime use, delivering consistent power, massive torque delivery, and superior fuel savings throughout various operational ranges. Meeting IMO Tier II emission benchmarks, it is ideally configured for commercial fleets, large utility vessels, and offshore operations, prioritising rugged reliability, cost-effective performance, and a long-term service duration.

ENGINE DATA

Rated Power (HP)1100
Rated Power (kW)809
Rated Speed (RPM)1500
Max. Torque Nm @ RPM6390 @ 1000
Rotating Direction (Facing Flywheel End)Anticlockwise
Bore × Stroke (mm)150 × 185
Displacement (L)19.6
No. of Cylinders6 – Inline
AspirationTurbocharged Intercooled
Power Output SizeSAE 0 / 18
Compression Ratio15:1
Emission StandardIMO Tier II
CertificationIRS/CCS/BV
Fuel Consumption (g/kW.h)≤200
Oil Sump Capacity (L)113
CONNECT WITH US FOR PROJECT CONSULTATION

RATING

DutyHPKWRPMCertification
P1 (Continuous)11008091500IMO II
